Non-Oxide Ceramic Matrix Composites

COI Ceramics, Inc. (COIC) is a leading developer and manufacturer of non-oxide ceramic matrix composites, produced using the Polymer Infiltration & Pyrolysis (PIP) process. This process is a versatile and robust manufacturing method that is well-suited for the fabrication of complex-shaped components. The PIP process takes advantage of the shaping capability afforded by a combination of polymeric and ceramic process steps.

COIC offers a number of non-oxide Ceramic Matrix Composites (CMCs) materials that incorporate various types of Silicon Carbide (SiC) and carbon reinforcing fibers, SiC/Silicon Nitride (Si3N4) matrix chemistries, and matrix modifiers. By selecting various combinations of these constituents, ceramic matrix composites can be produced with tailored properties for a broad range of industries and applications. Typically, constituents are chosen based on application-specific operating conditions such as temperature, environment, mechanical stresses, and lifetime requirements.

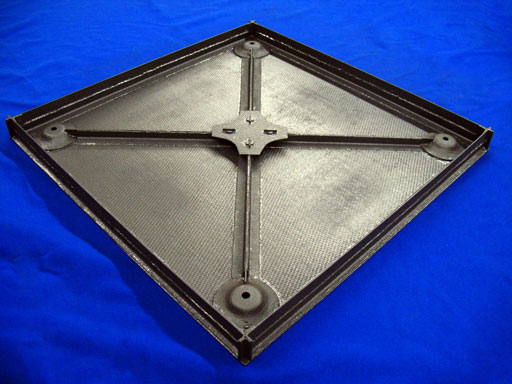

Non-Oxide Thermal Protection System Panel

Benefits

Physical Attributes

  • High Temperature Capability
  • High Shear Stress Capability
  • Dense Matrix (>95%)
  • Wear Resistance

Reinforcing Fiber Flexibility

  • S200 - CG Nicalon
  • S200H - Hi-Nicalon
  • S300 - Sylramic SiC
  • S400 - Carbon

BN-Based Fiber Interface Coating

Typically Used For

Honeycomb Panels

Non-Oxide Ceramic Matrix Honeycomb Panel

Military Aircraft Propulsion Exhaust

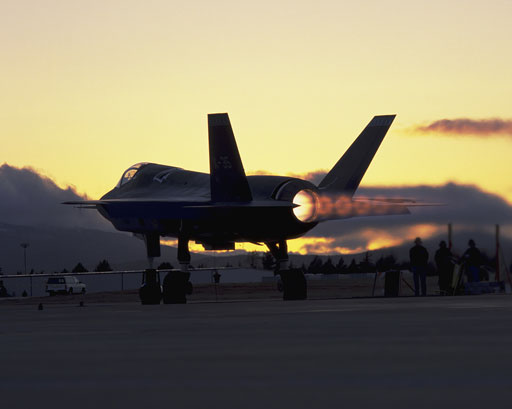

Military Aircraft Propulsion Exhaust F35

Thermal Protection System

Non-Oxide Ceramic Matrix Thermal Protection

Material Comparisons

COIC offers several grades of SiC-SiC CMC and SiC-SiNC CMC systems to achieve an optimum cost versus performance solution for customers looking for a Silicon Carbide (SiC) fiber reinforced CMC, in a SiC or SiNC matrix. The S200 CMC is a lower cost option for intermediate temperature applications. The S200H and S300 CMCs offer higher performance capability but have a higher manufacturing cost. COIC also offers the S400 family of carbon fiber reinforced CMC. The C-SiC CMC and C-SiNC CMC chemistries offer a range of cost and performance to support the selection of an optimum value solution for customers.

COIC also offers the S400 family of carbon fiber reinforced CMC. The C-SiC CMC and C-SiNC CMC chemistries offer a range of cost and performance to support the selection of an optimum value solution for customers.

Material Name Fibers Fiber Interface Matrix Maturity
S200 CG Nicalon™ (1) BN-Based SiNC (a) Flight Testing
S200H Hi-Nicalon BN-Based SiNC (a) NASA Database
S300 Sylramicâ„¢ SiC (2) BN-Based SiC + Si3N4 (b) NASA Database
S400 Carbon Carbon SiC + Si3N4 (b) NASA Database
S400N Carbon Carbon SiNC (a) NASA Database
(1) CG Nicalon, Hi-Nicalon trademarks of NGS Advanced Fibers Co., Ltd.; (2) Sylramic trademark of COI Ceramics, Inc.; (a) amorphous matrix; (b) crystalline matrix.
